How much do you know about Distribution Cabinet?

Nov. 23, 2019
Share

The distribution box is a massive parameter on the data. Generally, it constitutes a low-voltage forest. According to the electrical wiring, it is required to assemble the switchgear, measuring instrument, protective device and auxiliary equipment in a closed or semi-closed metal cabinet or on the screen to form Economy Low- Voltage Distribution Cabinet. In normal operation, the circuit can be switched on or off with the aid of a manual or automatic switch.

The distribution box has the advantages of small size, simple installation, special technical performance, fixed position, unique configuration function, no site limitation, common application, stable and reliable operation, high space utilization, small footprint and environmental protection.

The distribution box has the advantages of small size, simple installation, special technical performance, fixed position, unique configuration function, no site limitation, common application, stable and reliable operation, high space utilization, small footprint and environmental protection. It is the control center that commands the various components in the power supply line to distribute power reasonably. It is the control link that reliably accepts the upper-end power supply and correctly feeds the load energy. It is also the key to obtain the user's satisfaction with the power supply quality. Improving the operational reliability of power distribution boxes is the goal of creating quality projects. The purpose of the distribution box: reasonable distribution of electrical energy, to facilitate the opening and closing of the circuit. It has a high level of security protection and can intuitively display the conduction state of the circuit.

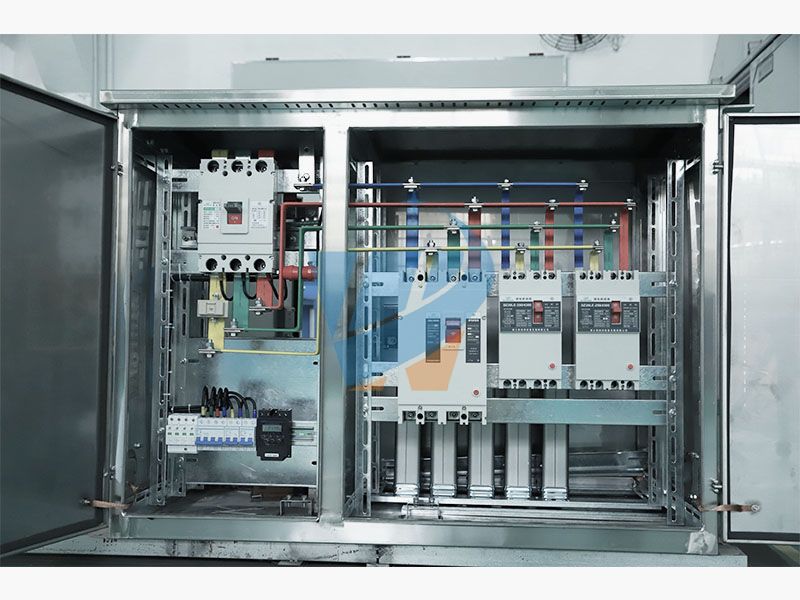

JP Outdoor Integrated Distribution Box

JP Outdoor Integrated Distribution Box

Commonly used distribution boxes are available in both wood and metal. Because metal distribution boxes have a higher degree of protection, they are still used in metal.

As a Power Distribution Cabinet Manufacturer, let me introduce you to the distribution box according to its structural characteristics and usage:

(1) Fixed panel switchgear, often called switchboard or power distribution panel. It is open switchgear with panel covering, the front side has protective effect, the back and side can still touch the live part, the protection level is low, and can only be used for industrial and mining enterprises with low power supply continuity and reliability requirements. The transformer room is used for a centralized power supply. (2) Protective switchgear, which refers to a low-voltage switchgear that is enclosed except for the mounting surface. The electrical components such as the switch, protection and monitoring control of the cabinet are installed in a closed casing made of steel or insulating material and are mounted on a reliable wall or off the wall. There may be no isolation between each circuit in the cabinet, or it may be isolated by a grounded metal plate or insulating plate. Usually, the door is mechanically interlocked with the main switch operation. There is also a protective table type switchgear (ie console) with controls, measurements, signals and other electrical appliances. The protective switchgear is mainly used as a power distribution unit at the process site. (3) Drawer type switchgear. This type of switchgear is made of the steel plate and closed, and the electrical components of the inlet and outlet circuits are installed in drawers that can be withdrawn to form a functional unit that can perform certain types of power supply tasks. Our company also has JP Outdoor Integrated Distribution Box for sale, welcome to consult.
